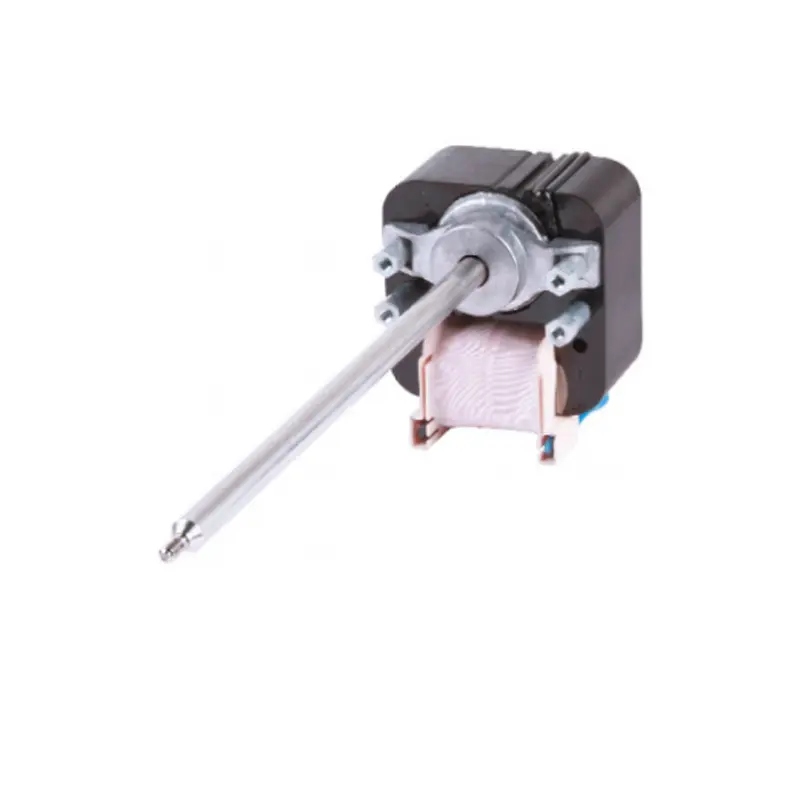

YJF SERIES MOTOR-(WATER-STIR MOTOR)
Product DisplaySENJUN
Product introductionSENJUN
1.This series motor has advantages, such as safety, reliability, low noise,little vibration, excellent starting performance, and long service life.
2.This series motor is applicable to blenders,small water pumps,etc.
3.This series motor's outgoing line specification and dimension “L” may be produced according to the user requirements.
Instructions for Use :Operating mode::S1 insulation grade: : Class F
Protection Class: :lP41 Environmental Temperature: : -30C~ + 80°C
Motor performance parameter tableSENJUN
|
Model
|
Rated voltage V
|
Rated frequency HZ
|
Input power W
|
Rated power W
|
Rated current A
|
Rated speed r/min
|
Max torque g.cm
|
Fan blade mm
|

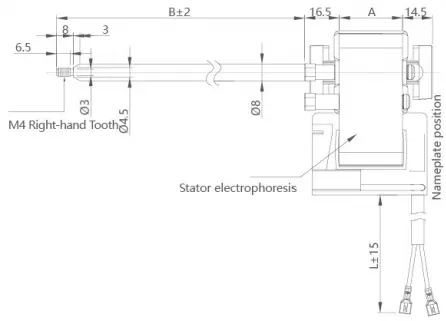

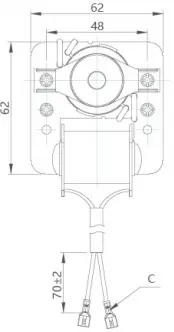

size |
Classification
|
|||
|
A mm |
B mm |
C mm |
L mm |
||||||||||
|
YJF61-30
|
220-240 |
50/60 |
15 |
8 |
0.12 |
2500 |
400 |
∅56Two plastic leaves |
30 |
Can be customized according to customer requirements |
EBFH |
||
110-120 |
60 |
15 |
8 |
0.12 |
2650 |
400 |
∅56Two plastic leaves |
30 |
Can be customized according to customer requirements |
EBFH |
|||
|
YJF-61-40
|
220-240 |
50/60 |
25 |
12 |
0.16 |
2500 |
500 |
∅56Two plastic leaves |
40 |
Can be customized according to customer requirements |
EBFH |
||
110-120 |
60 |
25 |
12 |
0.16 |
2650 |
500 |
∅56Two plastic leaves |
40 |
Can be customized according to customer requirements |
EBFH |
|||
